P3.91 Pitch Indoor LED Advertising Display , High Resolution Small Pixel Pitch Led Display
SPECIFICATION
1) It is extremely easy to calculate the area of LED screen because it is consist of 500*500mm or 500mm*1000mm cabinet.
2) 16 bit color, 65536 gray scale, refresh rate over 3840HZ/S so the video or images on the LED screen are very vivid and fresh. People who see it will get shocked by this amazing viewing experience.
3) The appearance is very elegant, it looks very high end. Quality is very stable
4) It is die-casting aluminum cabinet, very strong and precision is very high, tolerance can be controlled in 0.1mm so the surface is very smooth, almost no gap between cabinets
5) The side locks is spring locks, this is unique among all die-casting aluminum cabinets, especially popular in European market and North American market
6) With power and signal connectors, Neutrik or Seetronic brand, very easy to install and dismantle
7) High contrast rate up to 5000:1 by using black LED
8) The new structure design enables diversified installation to meet the hanging-up and stacking requirements.
9) Due to the light weight and low power consumption, it can reduces the labor cost,operating cost and transportation cost
10). Good thermal design, excellent heat dissipation even no fan installation,
11) The same cabinet size can be compatible with different pixel pitches such as P2.84/P3.125/P3.91/P4.81/P5.68 and P6.25.If you want to update the product, you only need to change the module.
12).It is low noise, can be installed in office and meeting room.
| Product Name | Indoor P3.91 SMD HighDefintion Full Color 3IN1 |
| Pixel Pitch | 3.91 mm |
| Pixels Density | 65536 dots/m² |
| pixel configuratin | 1R1G1B |
| pixel resolution | 64dots * 64dots |
| module size | 250*250mm |
| LED Lamp | SMD2121 |
| Drive type | Constant current |
| scan mode | 1/16scan |
| port type | HUB75 |
| Brightness of white balance | 1,300 cd/m² |
| Cabinet size | 500*500mm |
| Pixel per cabinet | 128dot*128dot |
| Max.Power consumptiow (W/m²) | ≤800W/㎡ |
| Working voltage | AC110V~220V ±10% |
| Best viewing distance | >4m |
Warrenty Terms
provides an excellent after-sales service on the prerequisite of customer satisfaction.
1. All the products owners purchased from Canbest possess the following rights:
A: Unconditional replacement within 7 days.
B: 2 years warranty for maintenance.
2. The repaired products will be sent back at CANBEST cost to customer within 7 days( from the date we
receive the defective products at customers cost).
3. 100% authentic
By Alibaba strict assessment, for you to select high visibility, quality, good service goods;
10 times refund in case any fake were found.
4. 12 hours after-sale service
Canbest professional services team promises to resolve any problems related to the use, installation and
configuration of the product within 12 hours.
5. 30 days price protection
If the price of the products as what you purchased is getting lower within 30 days, Canbest will refund the price
difference.
Product Tags:
|
|

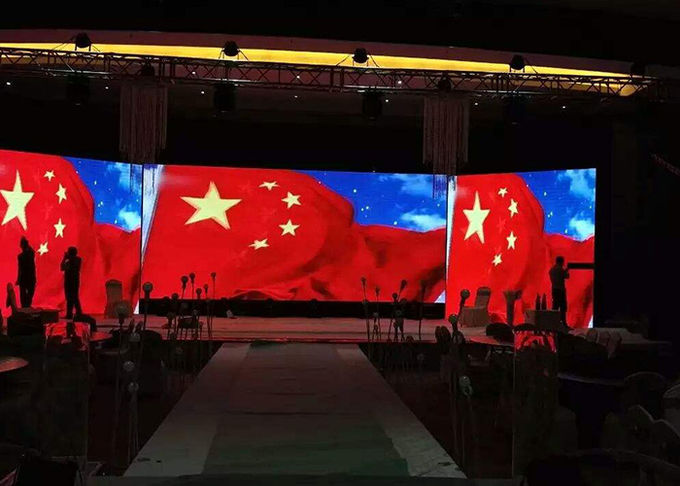

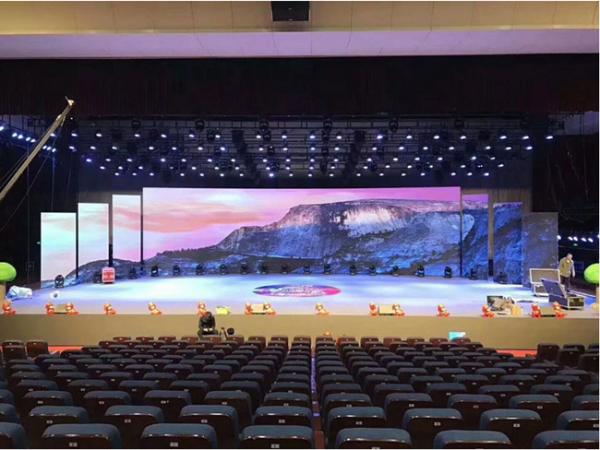

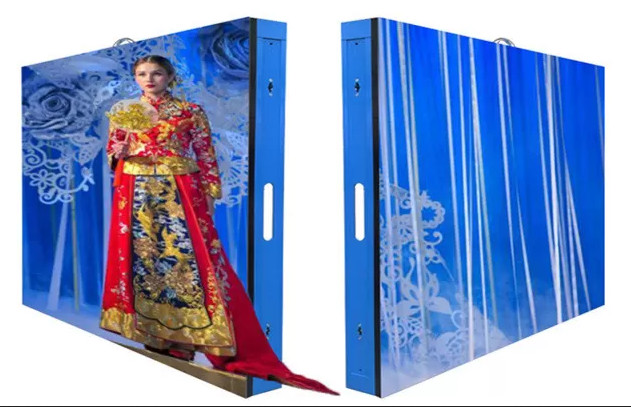

P3.91mm Indoor Advertising LED Display Screen Images
|
